Sandwich Radomes

SHEERGARD® Sandwich Radome products are advanced, passive structures designed to protect antenna systems in challenging environments without requiring external power or electronical systems. Built with a durable wall structure, these radomes use resin-impregnated fiberglass skins surrounding a low-density foam core, creating a robust sandwich construction. This advanced sandwich construction, along with its meticulously engineered and manufactured joints, ensures optimal electromagnetic performance for the antenna system.

SHEERGARD sandwich radome products are an innovative, cost-effective solution for long-term antenna protection.

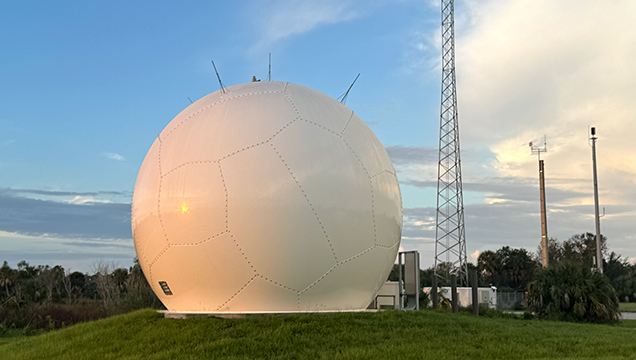

Sandwich Composite Radome

Why Choose SHEERGARD Sandwich Radomes

Compared to air-supported radomes, SHEERGARD® sandwich radomes provide excellent electromagnetic performance within narrow frequency ranges (approximately 3-5 GHz) while reducing overall operating and procurement costs. Furthermore, advanced sandwich radome designs can accommodate multi-band capabilities, making them ideal for applications involving higher frequencies in combination with L-band and S-band operations.

Key Benefits of SHEERGARD Sandwich Radomes:

      • Environmental Protection: Sheergard radomes shield antennas from wind, rain, and snow, enhancing system resilience and uptime.
      • Passive Structure: No power or electronics needed for structural integrity.
      • Cost-Effectiveness: Lower lifecycle costs and fewer maintenance requirements.
      • Customization: Every radome is tailored to meet specific needs in size, shape, truncation, and electromagnetic performance.
      • Fastening Hardware Options:  A variety of fastening hardware choices to support cost efficiency, withstand marine environments, and enable one-sided assembly can be offered.

Key Features of SHEERGARD Sandwich Radome Products:

      • Versatile Sizing: Sandwich radomes available in sizes from 3m to 24m, with approximately 1m increments.
      • Frequency Range: Engineered for frequencies up to Ka-band.
      • Robust Construction: Resin-impregnated fiberglass skins with a low-density foam core ensures structural durability.
      • Electromagnetic Precision: Optimized for specific frequency bands, with options for multi-band support.
      • Extended Service Life: Expected lifespan of over 20 years with minimal maintenance.
      • Solar Rejection Properties: Excellent solar protection, particularly with standard white exteriors.
      • Low Boresight Error: Minimal error and rate of change for accurate antenna alignment.
      • Randomized Panel Geometry: Reduces coherent scattering and minimizes sidelobe degradation.
      • Low Intermodulation Products: Ensures high signal integrity.
      • Easy Installation: Integrated bolting flange allows for adaptable mounting configurations.
      • UV and Water Protection: Hydrophobic, UV-stabilized surface enhances outdoor resilience.
      • Optimized for Shipping: Panel design enables efficient shipping and simple installation.

Discover the reliability and performance of SHEERGARD Sandwich Radome solutions for cost-effective, long-lasting antenna protection across SATCOM, 2D/3D military radar, weather radar, TT&C applications and more.

Export Control:

Export of SHEERGARD Sandwich radomes are covered under EAR99 No License Required.  This allows easier export of these systems for applications such as Satcom, Military Radars under USML Category XI and Telemetry/Tracking Systems under USML category XV.

Unsurpassed RF Performance

The primary function of a radome is to protect the enclosed antenna system while having minimal effect on the transmission of the electromagnetic signal.

Structural Modeling

Finite element analysis is applied to a wide range of structures, from simple spheres and electromagnetic windows to custom configurations.

Extreme Environmental Protection

SHEERGARD materials have been analyzed and tested for structural application to all environmental conditions.

Proven Reliability

The materials used for radome fabrication are composites consisting of a woven substrate fabric protected with applied coatings, providing tensile strength and tear resistance.

Low Life-Cycle Cost

The materials used in SHEERGARD radomes provide superior life-long hydrophobic performance, minimal surface maintenance is required.
